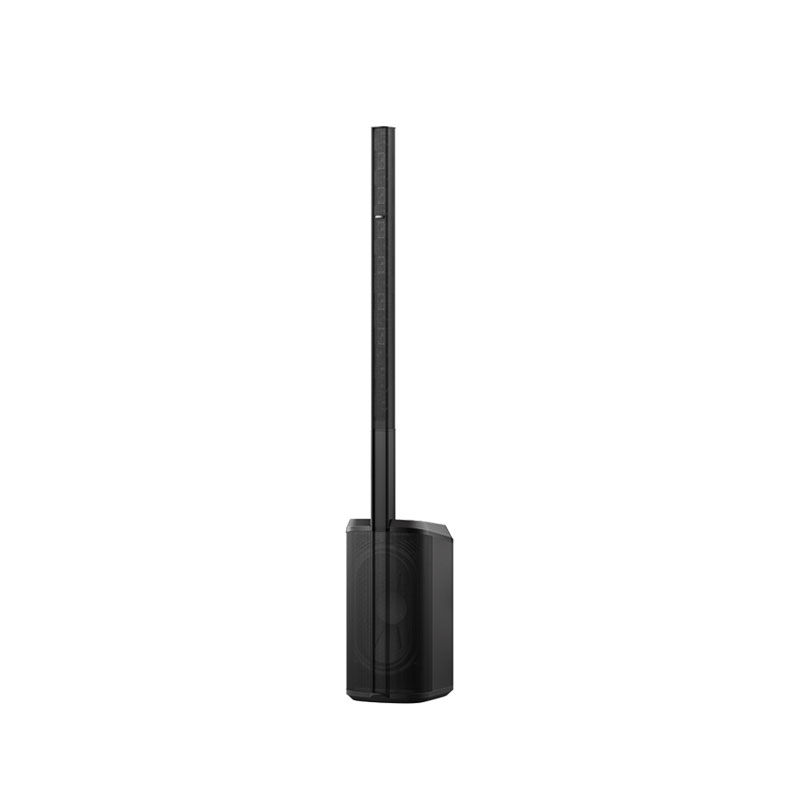

L1 PRO16 PORTABLE LINE ARRAY,230V,EU

The L1 Pro16 strikes the perfect balance of power and portability, ideal for small to medium venues like clubs and bars. Its 16-driver J-shape array delivers wide 180° sound coverage and deep bass via a compact built-in subwoofer. With a multi-channel mixer, Bluetooth® streaming, ToneMatch presets, and wireless control through the Bose Music app, it’s a versatile system for DJs, singer-songwriters, and small bands to perform with clarity and ease.
SPECS
Technical Specification
AMPLIFICATION
• Number of Channels : 2
• Power Class : Class D
AUDIO INPUTS, ANALOG
• Input Channels : 3
• Connectors : (1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming
• Sensitivity Options : -100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver
• Phantom Power : 48 VDC, Channels 1 & 2
COMPLIANCE
• Safety : UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment
ELECTRICAL
• AC Power Connector : IEC
• AC Power Input : 100–240 VAC (±15%, 50/60 Hz)
• Current Draw, Inrush : 15.7 A at 120 VAC, 60 Hz / 28.4 A at 230 VAC, 50 Hz
GENERAL
• Software Applications : Bose Music (Android, iOS)
• Computer Interface Connection : USB Type-C
INDICATORS AND CONTROLS
• Controls, Rear Panel : 3 digital rotary encoders
• LED Status Indicators : (1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs
INTEGRATED DSP
• DSP-Enabled : Yes
• Presets : ToneMatch presets
• Processing Functions : System EQ, reverb
PHYSICAL
• Colors : Black
• Enclosure Material : Power stand: High-impact polypropylene / Extension & Array: High-impact ABS
• Grille : Perforated steel, powder-coated finish
• Cooling System : Convection cooling
• Product Dimensions (H×W×D) : 79.2 in × 14.0 in × 18.0 in (2011 mm × 355 mm × 456 mm)
• Net Weight : 50.6 lb (23.0 kg)
• Shipping Dimensions (H×W×D) : 44.0 in × 18.1 in × 25.6 in (1118 mm × 460 mm × 650 mm)
• Shipping Weight : 62.6 lb (28.4 kg)
PERFORMANCE
• Frequency Range (-10 dB) : 31 Hz – 18 kHz
• Coverage, Horizontal : 180°
• Calculated Maximum SPL @ 1 m : 124 dB
• Power Handling, Peak : 1000 W
• Coverage, Vertical : 0°/30°
TRANSDUCERS
• Crossover : 200 Hz
• High-Frequency : 16 × 2 in (51 mm) drivers
• Low-Frequency : 1 × RaceTrack low-frequency 10 × 18 in (254 × 457 mm) driver
