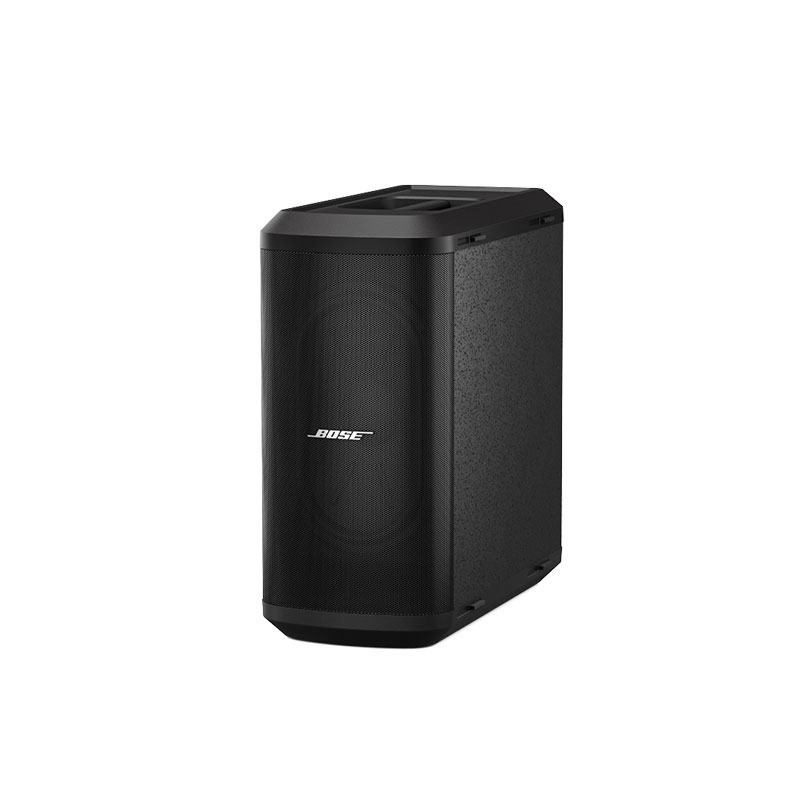

The Sub1 is a compact, powered subwoofer that delivers deep bass down to 40 Hz with its slim 7×13″ RaceTrack driver. Ideal for the L1 Pro32 or other portable PAs, it offers big performance in a small footprint. Stack multiple units for more bass or use Cardioid Mode for focused low end — all with simple SubMatch connectivity.
SPECS
Technical Specification
AMPLIFICATION
• Number of Channels : 1
• Power Class : Class D
AUDIO INPUTS, ANALOG
• Input Channels : 2
• Connectors : (1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)
• Sensitivity Options : +10 dB to +45 dB, input to driver
• Phantom Power : No
COMPLIANCE
• Safety : UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment
ELECTRICAL
• AC Power Connector : IEC, SubMatch
• AC Power Input : 100–240 VAC (±20%, 50/60 Hz)
• Current Draw, Inrush : 14.9 A at 120 VAC, 60 Hz / 29.3 A at 230 VAC, 50 Hz
GENERAL
• Software Applications : Bose Music (Android, iOS)
• Computer Interface Connection : USB Type-C
INDICATORS AND CONTROLS
• Controls, Rear Panel : Power, EQ, and Volume Control
• LED Status Indicators : (1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs
INTEGRATED DSP
• DSP-Enabled : Yes
• Processing Functions : Input EQ, output EQ, phase/pattern polarity inversion
PHYSICAL
• Colors : Black
• Enclosure Material : High-impact polypropylene, birch plywood
• Grille : Perforated steel, powder-coated finish
• Cooling System : Convection cooling
• Product Dimensions (H×W×D) : 21.0 in × 10.2 in × 20.8 in (533 mm × 260 mm × 529 mm)
• Net Weight : 34.1 lb (15.5 kg)
• Shipping Dimensions (H×W×D) : 24.4 in × 24.4 in × 13.0 in (620 mm × 620 mm × 330 mm)
• Shipping Weight : 39.6 lb (18.0 kg)
PERFORMANCE
• Frequency Range (-10 dB) : 32 Hz – 250 Hz
• Coverage, Horizontal : 0°
• Calculated Maximum SPL @ 1 m : 124.6 dB
• Power Handling, Peak : 480 W
• Coverage, Vertical : Omnidirectional (with -10 dB rear rejection in cardioid mode)
TRANSDUCERS
• Crossover : 200 Hz
• Low-Frequency : 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver
