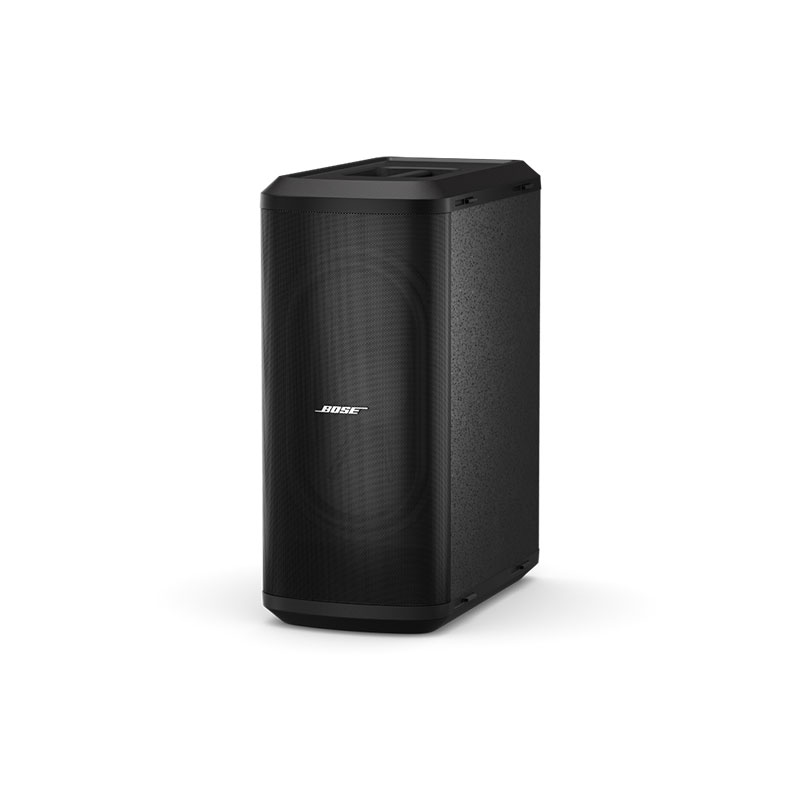

SUB2 POWERED BASS MODULE,230V,EU

The Sub2 is a powerful, portable subwoofer with deep bass down to 37 Hz, featuring a slim 10×18″ RaceTrack driver for big sound without bulk. Designed for the L1 Pro32 or other PAs, it connects easily via SubMatch and supports stacking or Cardioid Mode for directional bass — perfect for filling the dance floor.
SPECS
Technical Specification
AMPLIFICATION
• Number of Channels : 1
• Power Class : Class D
AUDIO INPUTS, ANALOG
• Input Channels : 2
• Connectors : (1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)
• Sensitivity Options : +10 dB to +45 dB, input to driver
• Phantom Power : No
ELECTRICAL
• AC Power Connector : IEC, SubMatch
• AC Power Input : 100–240 VAC (±20%, 50/60 Hz)
• Current Draw, Inrush : 15.2 A at 120 VAC, 60 Hz / 28.6 A at 230 VAC, 50 Hz
GENERAL
• Software Applications : Bose Music (Android, iOS)
• Computer Interface Connection : USB Type-C
INDICATORS AND CONTROLS
• Controls, Rear Panel : Power, EQ, and Volume Control
• LED Status Indicators : (1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs
INTEGRATED DSP
• DSP-Enabled : Yes
• Processing Functions : Input EQ, output EQ, phase/pattern polarity inversion
PHYSICAL
• Colors : Black
• Enclosure Material : High-impact polypropylene, birch plywood
• Grille : Perforated steel, powder-coated finish
• Cooling System : Convection cooling
• Product Dimensions (H×W×D) : 27.3 in × 12.5 in × 21.7 in (694 mm × 317 mm × 551 mm)
• Net Weight : 50.7 lb (23.0 kg)
• Shipping Dimensions (H×W×D) : 26.0 in × 15.2 in × 31.1 in (660 mm × 385 mm × 790 mm)
• Shipping Weight : 61.0 lb (27.7 kg)
PERFORMANCE
• Frequency Range (-10 dB) : 29 Hz – 260 Hz
• Calculated Maximum SPL @ 1 m : 129.8 dB
• Power Handling, Peak : 1000 W
• Coverage, Vertical : Omnidirectional (with -10 dB rear rejection in cardioid mode)
TRANSDUCERS
• Crossover : 200 Hz
• Low-Frequency : 1 × RaceTrack low-frequency 10 × 18 in (254 × 457 mm) driver
